SWITCH MODE POWER SUPPLY

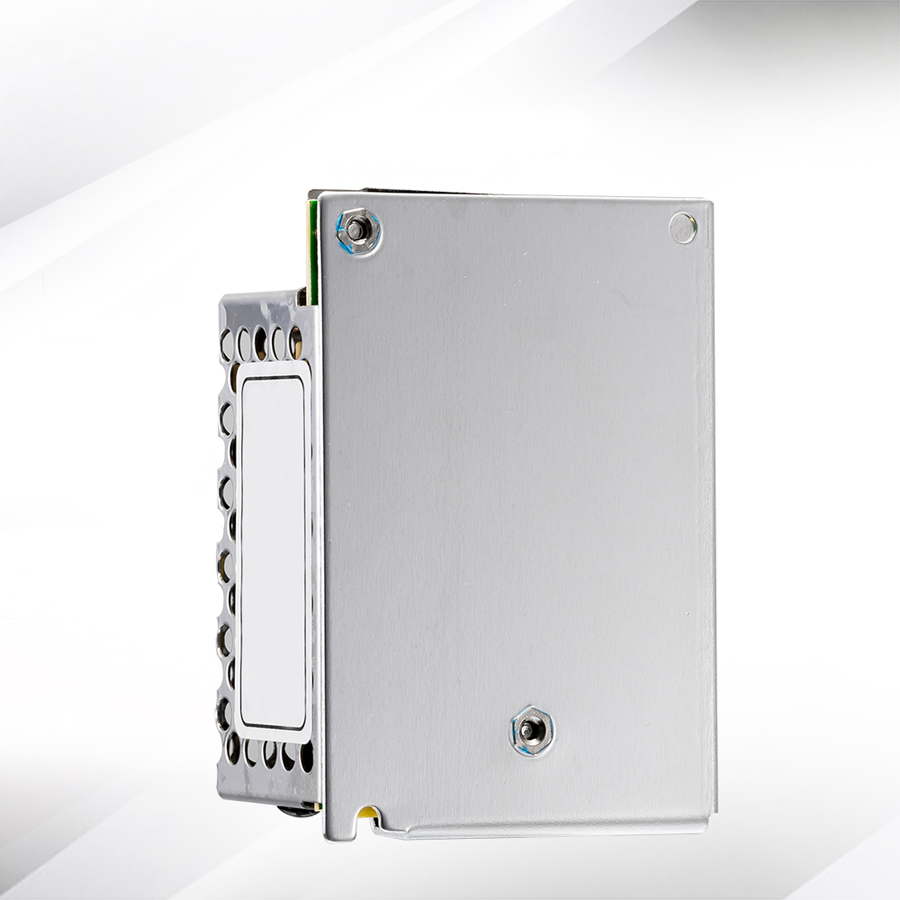

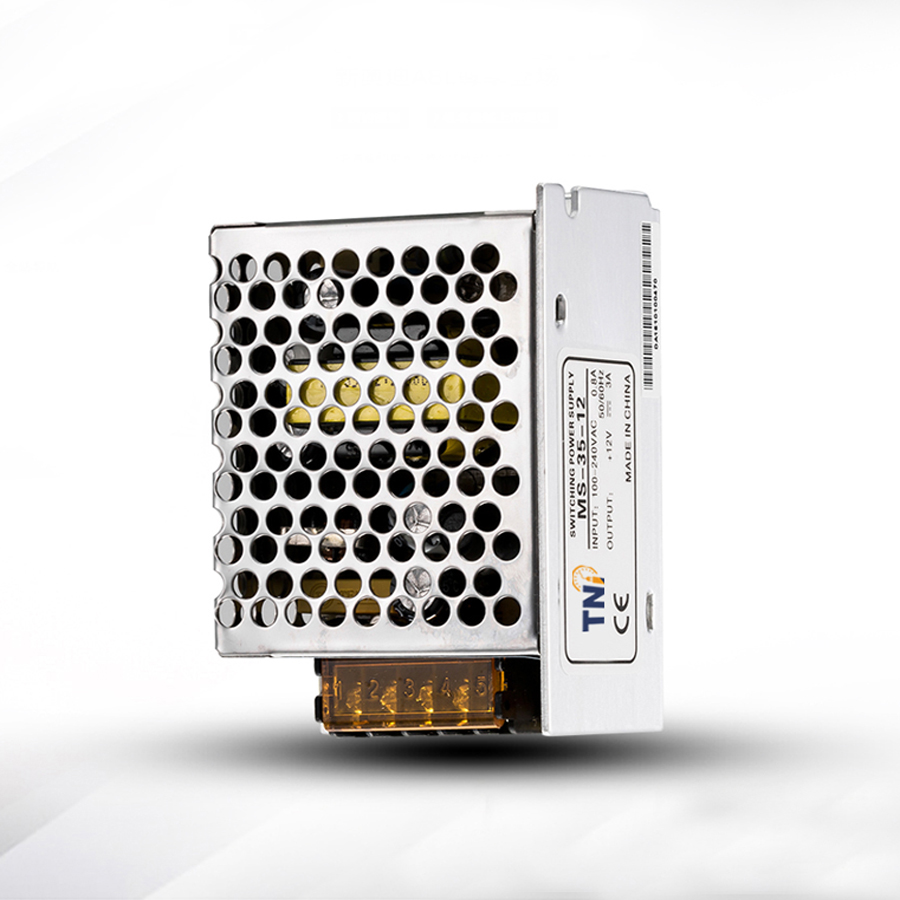

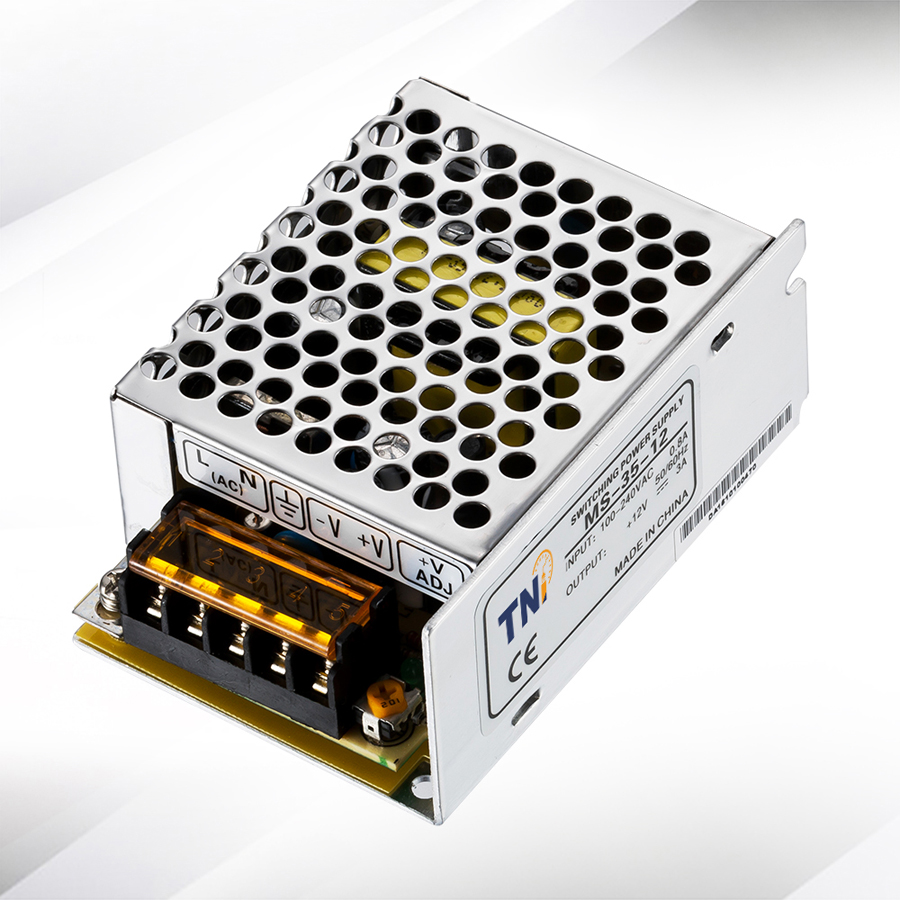

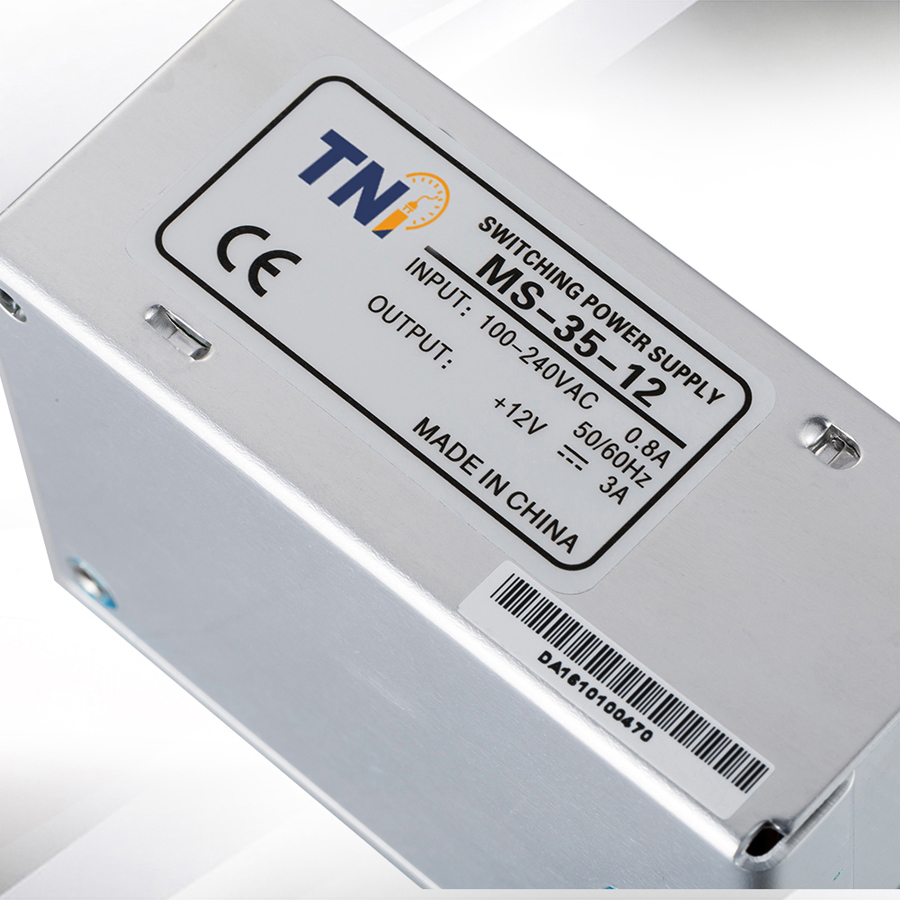

MS-35

 Power Rating : 35 W
 Available Voltages : 5V, 12V, 24V
 Output Currents : 7A(5V) ; 3A(12V) ; 1.5A(24V)
 Phase : 1 Phase
 Mounting Type : Bottom
  Applications
 Industrial Control Panel  Injection Molding Machines
 Elevator Control Panel  Industrial Machinery
  Features
 Compact, Low Cost & High Reliability
 PROTECTION: Short circuit, overvoltage & overload
 100% Full load Burn-in test
 LED Indicator For Power On
 Cooling By Free air convection
 CE Marked on all Models
 1 Year Warranty

SPECIFICATION

 Voltage Range  100-120VAC
 200-240VAC
 Frequency Range  47-63Hz
 Efficiency  MS-35-5: 77%
 MS-35-12: 81%
 MS-35-24: 84%
 AC Current(typ.)   0.45A / 230VAC
 Inrush Current(typ.)  30A / 230VAC (for cold start at 250C)
 Leakage Current  <1mA / 240VAC

 OUTPUT SPECIFICATION
 Rated Current  MS-35-5: 7.0A
 MS-35-12: 3.0A
 MS-35-24: 1.5A
 Rated Power  35Watts
 Voltage ADJ. Range  Plus Sign Vector Minus Symbol And Signs Computer Transparent - Plus Minus Sign, HD Png Download - kindpng10% (with V.ADJ)
 Voltage Tolerance  Plus Sign Vector Minus Symbol And Signs Computer Transparent - Plus Minus Sign, HD Png Download - kindpng1%
 Ripple & Noise(Max)  MS-35-5: 80mVp-p
 MS-35-12: 120mVp-p
 MS-35-24: 120mVp-p
 Setup Time  800ms / 230VAC
 Rise Time  20ms / 230VAC
 Hold Time(typ.)  24ms / 230VAC

 PROTECTION
 Overload  100% to 110% rated load current
 Protection Type: Hiccup mode, Recovers Automatically after fault  condition is removed
 Overvoltage  Protection Type: Shutdown output voltage, re-power on to recover

 ENVIRONMENT
 Working  Temperature  -100C to 600C (derating is required according to temperature)
 Working Humidity  20% to 90% RH
 Storage Temperature  -200C to 850C (with no icing or condensation)
 Storage Humidity  10% ~ 95% RH
 Vibration Resistance  10 to 500Hz, 10min/1cycle (2G) for 60 minutes each in X,Y,Z directions

 SECURITY
 Isolation Resistance  I/P and O/P ; I/P and FG ; O/P and FG :100MΩ at 500VDC, 250C,70% RH
 Dielectric Strength  Between I/P and O/P : 1.5kVAC for 1 min
 Between I/P and F.G : 1.5kVAC for 1 min
 Between O/P and F.G : 0.5kVAC for 1 min

 STANDARDS
 Safety Standards  Accord with UL1012
 EMC Standards  Meet the EN55022 CLASS A Equipment

DIMENSIONS

Dimensions
